Description
FULL HD 1080P&3D TRANSMISSION OVER LAN CABLE
Uses Cat5/6 Land Cable Instead Of Hdmi Calbe
196FT HDMI EXTENSION

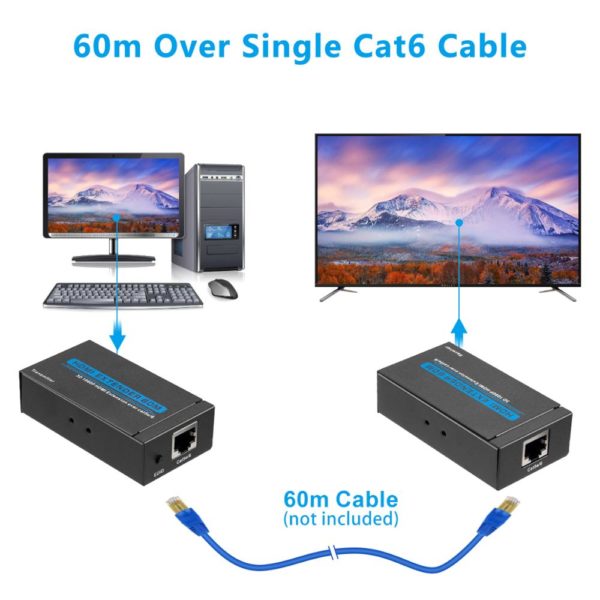

Uses a single Cat6/7 cable, you can easily extend HDMI signal up to 196 feet(60meters)
WIDLY USED IN MULTIMEDIA MEETING ROOM
Video Surveillance, Home Theater ,Home Appliance Store.etc
HDMI LOSSLESS TRANSMISSION
Support 1080P@60Hz 3D HDCP1.4

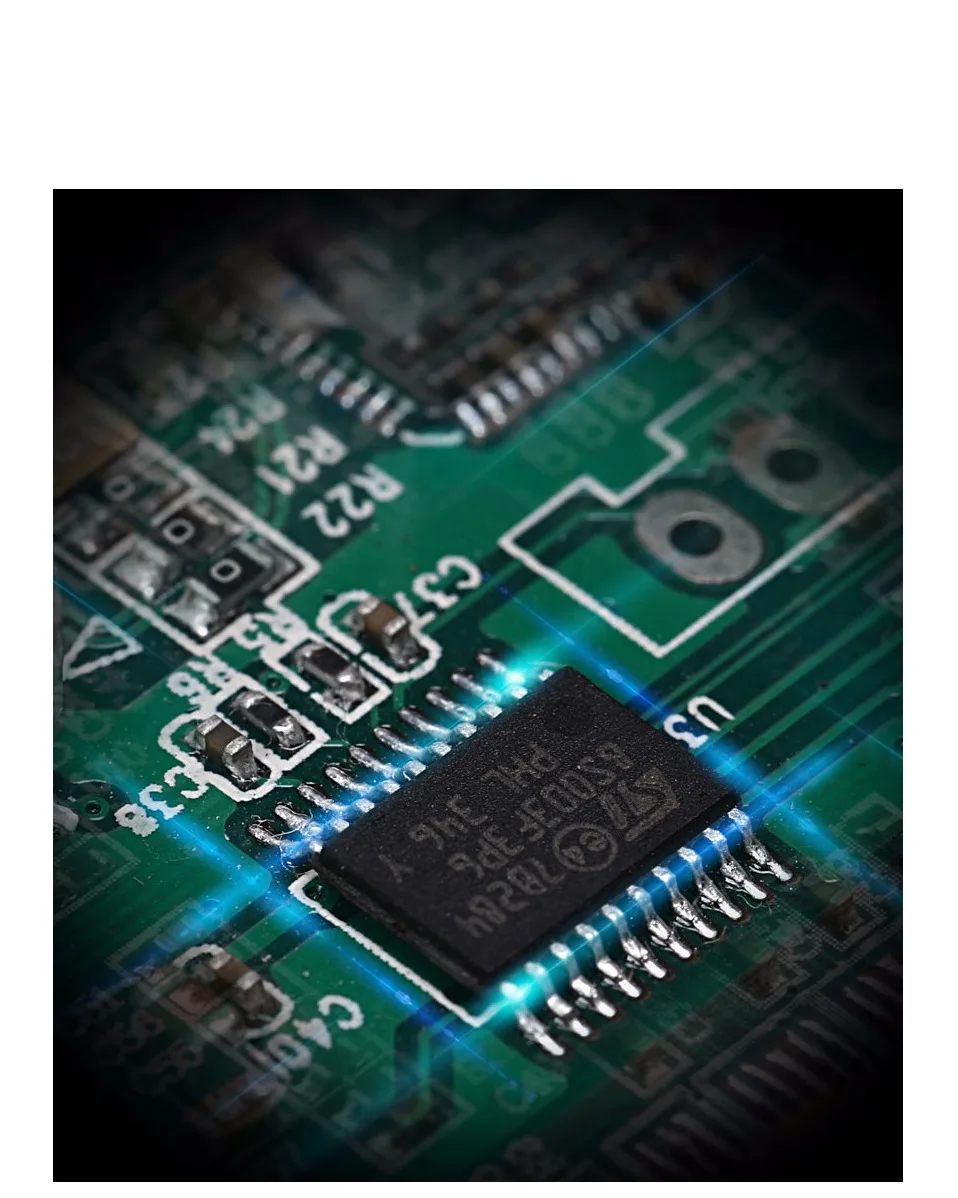

HIGH PERFORMANCE CHIP-SET
HDMI Extenders eliminate voltage drop with low-power HDMI ports to increase the connection distance
SMALL SIZE DESIGN TO SAVE SPACE
100% COMPATIBLE WITH ALL HD SOURCE/DISPLAY

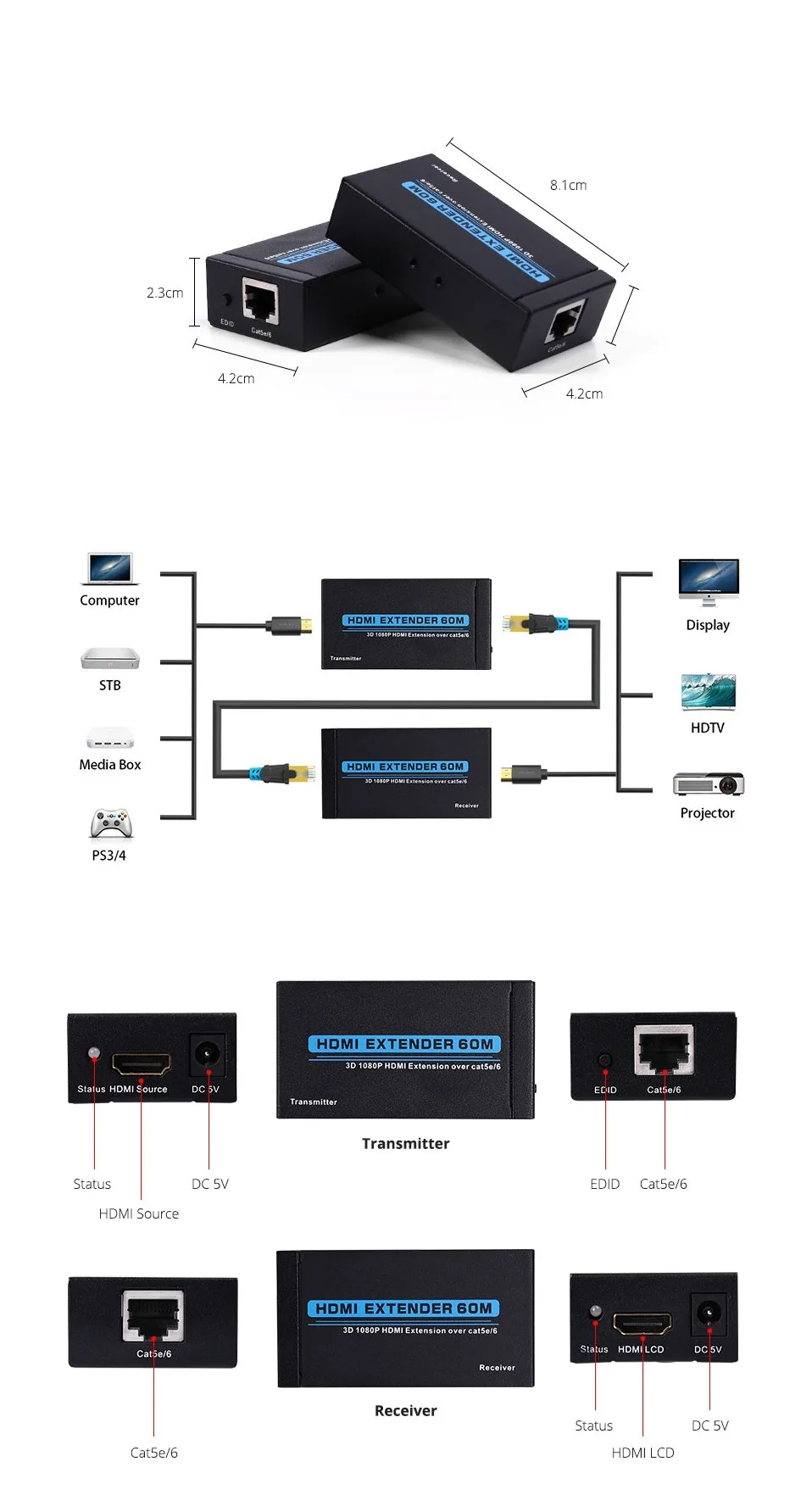

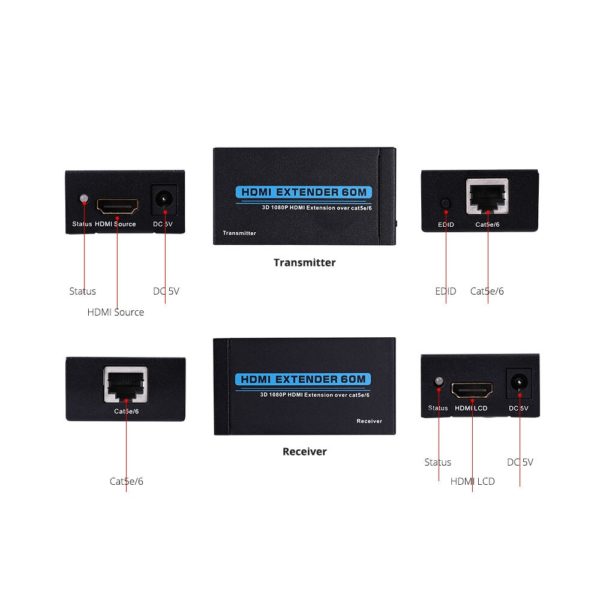

INTERFACE SPECIFICATION
White
Black

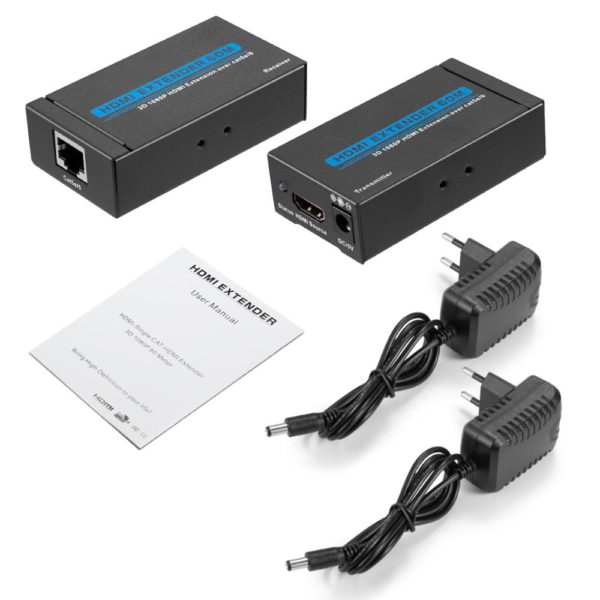

Package Includes :
1. TX Extender :1pc RX Extender:1 pc
2. 5V DC Power adapter
3. User Manual
White
Black

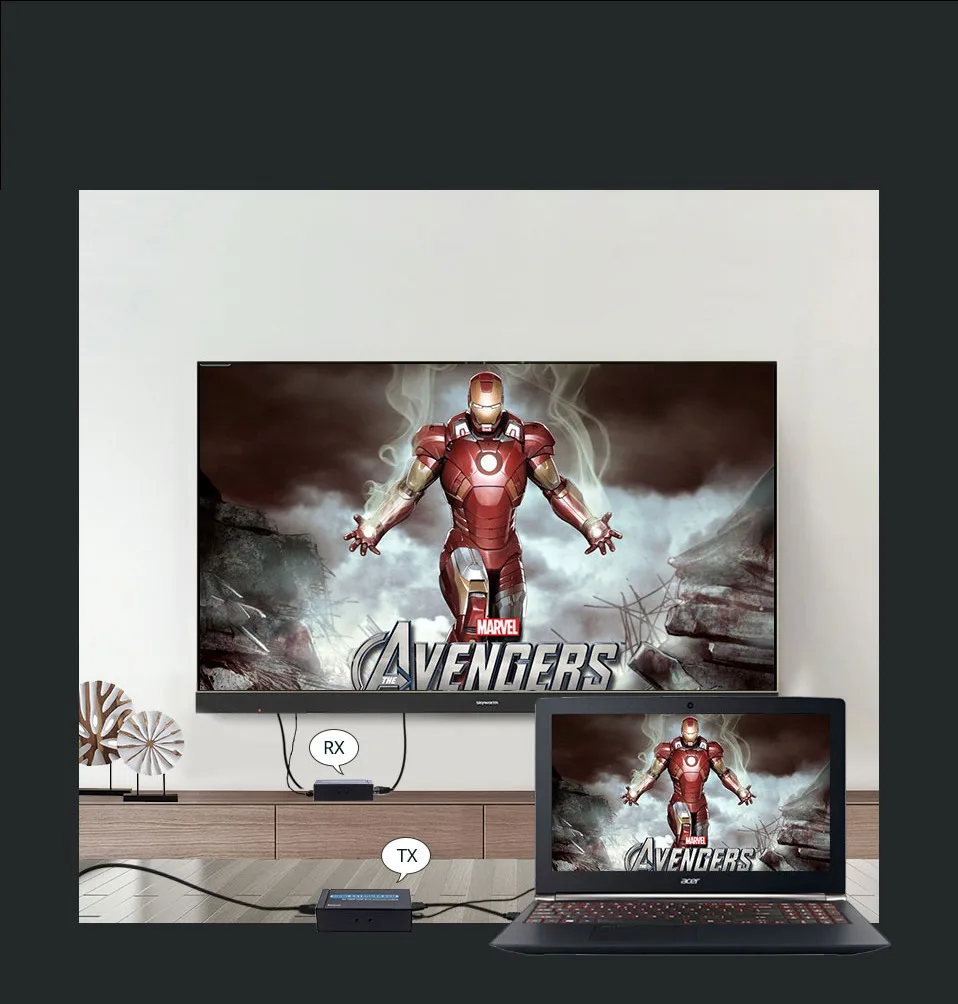

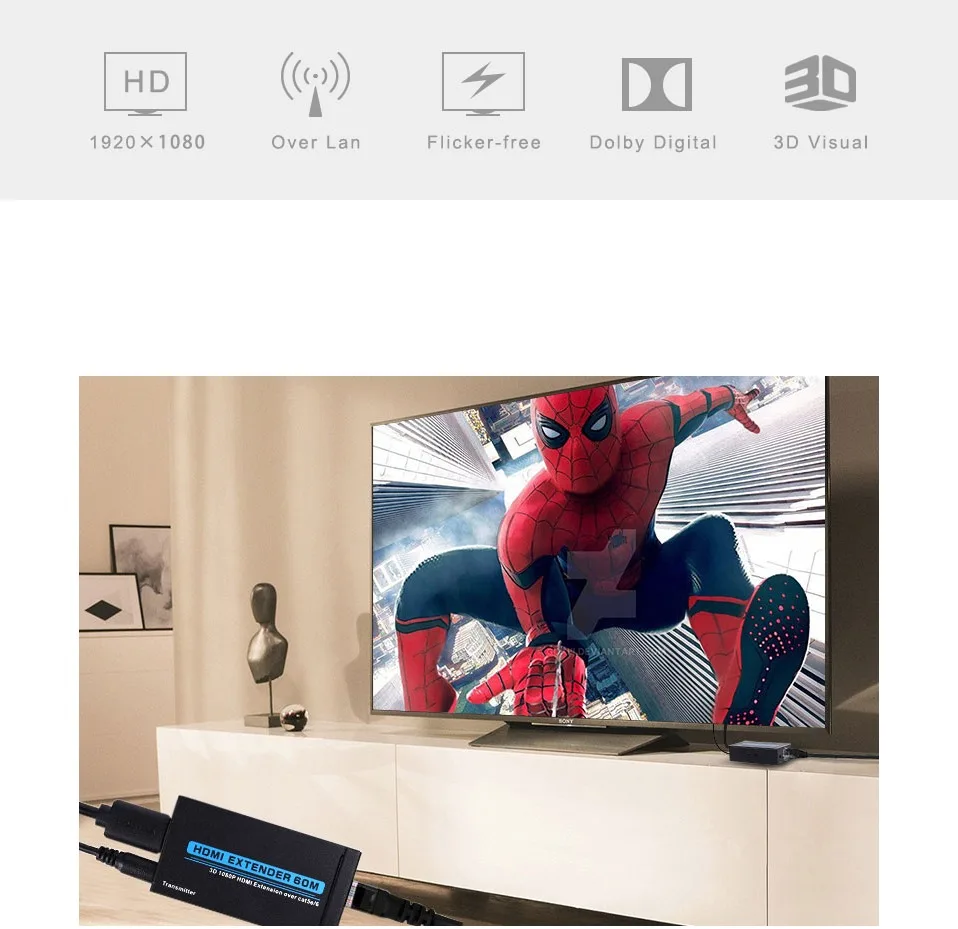

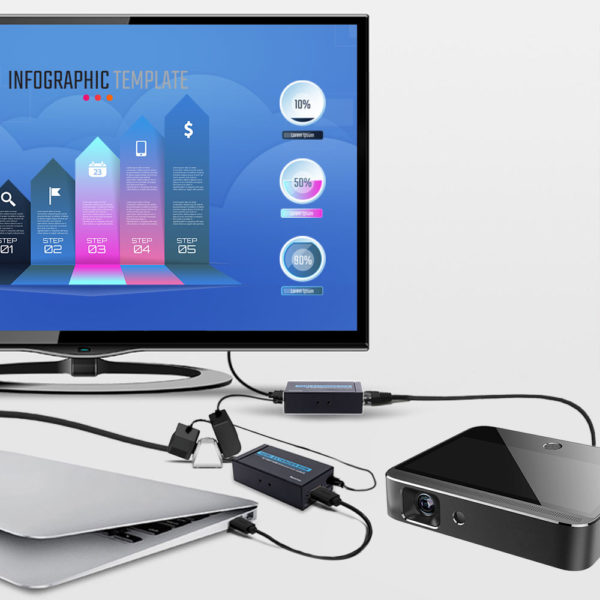

Applicaton Scenarios
Family Cinema,Playing Games,Multi-media Education and Conference Speech
White
Black
Specifications:
BY TOMSENN
Length of CAT-6/CAT-5E cable between Rx and TX:
HDMI Input:
Support audio input:
HDMI Output:
Support audio output:
Max bandwidth:
Max baud rate:
Input video signal:
Output DDC signal:
Input HDMI cable distance:
Output HDMI cable distance:
TX Max working current:
RX Max working current:
Power adapter format:
Operating Temperature range:
Operating Humidity range:
Dimension (L x W x H):
TX Weight:
RX Weight:
Up to 60 meters
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
165MHz
1.65Gbps
0.5~1.5Volts p-p
5Volts p-p (TT1L)
≤15m AWG26 HDMI standard cable
≤20m AWG26 HDMI standard cable
510mA
100mA
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
(-15 to +55 °C)
5 to 90%RH (No Condensation)
81x43x22 (mm)
200g
200g
White
Black
White
Black
Product Description
Tomsenn Proudly introduces this latest generation HDMI Extender by single CAT 5E,6,7 cable. Instead of
using expensive HDMI cables, this device lets you use your existing Cat5e, 6 cables, sockets while also
performing the same functions like transferring Deep Color video and new lossless compressed audio.
These devices apply in home decorating, project show, TV education environment which need The HDMI
signal transfer via cover-up or need transmit for long distance. Use flexible Cat5e or Cat6 or the latest CAT7
to make runs through walls and crimp custom lengths
· Support 65ft HDMI 1.3 cable at the TX input, and 65ft cable at the RX output.
· Support up to 200ft of CAT5e,6,7 between the TX and RX unit;.
· Resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50,60Hz, 1080i@50,60Hz, 1080p@50,60Hz
· Network cable: Low resistance and consumption oxygen-free copper core(CAT6、CAT6A、CAT7)
· HDMI signal: Compatible HDCP1.2/1.4
Supports audio format input: DTS-HD, Dolby true HD, LPCM7.1 , DTS , Dolby-AC3 , DSD
Features:
